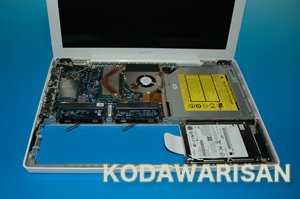

Access to the Logic board.

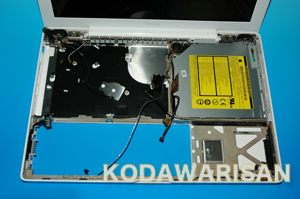

Removed the Logic board from the
MacBook
..

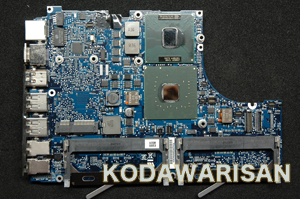

Front side of the Logic board.
Back side of the Logic board.
Intel Core Duo T2500 and Intel 945PM.
Intel ICH7-M Power controller.

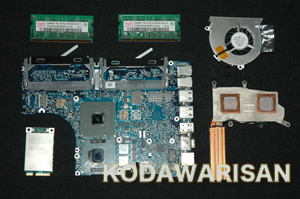

Logic board, Cooling Fan and AirMac module.

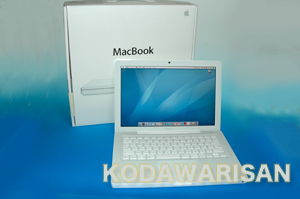

MacBook
の最新モデルを買う。
Other photos of a MacBook disassembly are available from our member : Suyama@KODAARISAN
