15.Oct.2008
Remove the cooling fan.

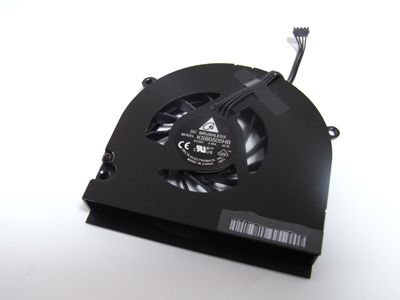

The Centrifugal Fan.
Remove the stick

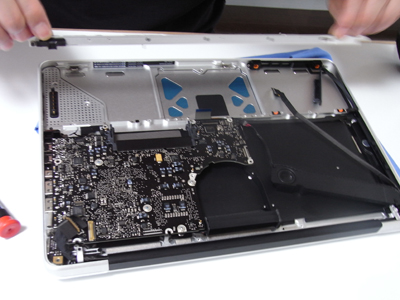

Access to the Logicboard.

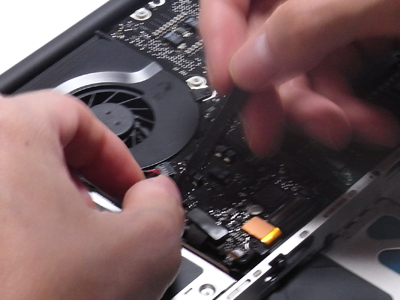

Remove the ribbon connectors.

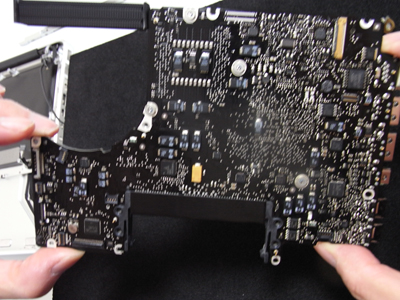

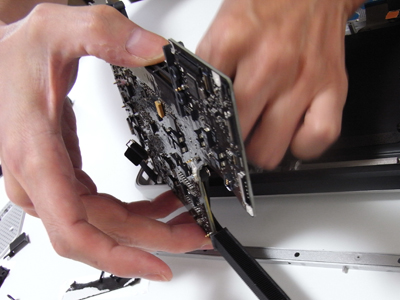

Lift up the Logicboard.

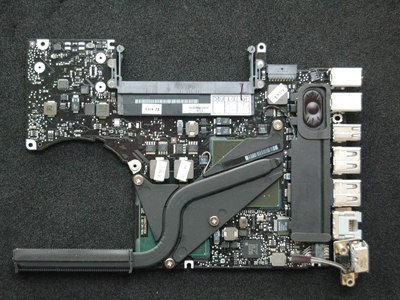

Logicboard (back side).

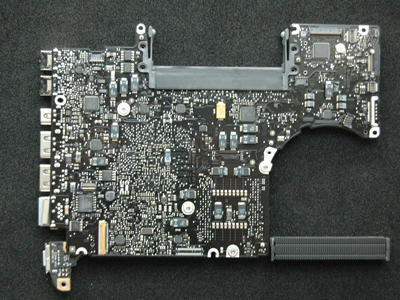

Logicboard (front side).
Remove the heat sink.

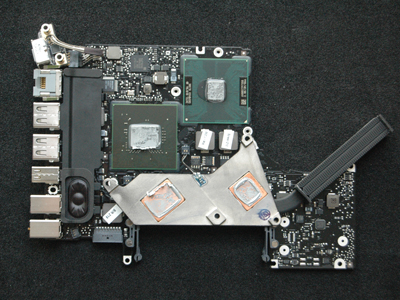

Intel Core 2 Duo and nvidia GPU.
